Technical Spec'




Factory Model No.55A82FEVS(0002)
Model No.55A8H,
SeriesA8H
Front-cover Material/ColorPlastic/Dark Grey
Back-cover Material/ColorPlastic/Black
Frame Design/MaterialBezelless
TV TypeOLED 4K Smart TV
Panel Performance
Panel TypeOLED
Anti-reflectant screenNo
Panel Aspect Ratio16:9
Panel Response Time (ms)3
Screen Size (diagonal)55inch
Screen Size (diagonal) CM138.8
Visible Screen Area (cm^2)8230.1
Max. ResolutionUltra HD 3840×2160
Curvature Rate-
Angle of visibility178°
Display Color Depth10bit
TCON color depth10bit
Wide Color GamutYes
Quantum Dot TechNologyNo
KSFNo
Color gamut range (DCI-PC3)> 95%
Vsync Frequency120Hz
Contrast150000:1
TV Brightness (nits)(Typical Value)135
TV Peak Brightness (nits) and Duration (s)800
Backlight techNologyOLED
Local DimmingNo
Local Dimming ZonesNA
Black LevelNA
3D techNologyNo
2D to 3DNo
PCI( Picuture Criteria Index)2400
HDR10Yes
HLGYes
HDR10+Yes
Dolby VisionYes
Improving Engines
ProcessorQuad Core/MT9900
Upscaling Ultra HDYes
MEMCYes
DecoderHEVC (H.265),VP9,H.264,MPEG4, MPEG2,AV1
Game Mode LevelGame Mode Pro
Game Mode(Input Lag)Yes (<20ms)
3D Digital Comb FilterYes
MPEG Noise reductionYes
Mosquito Noise reductionYes
UHD PremiumYes
IMAX EnhancedYes
Filmmaker modeYes
Dolby Vision IQYes
HDR10+ AdaptiveYes
Freesync PremiumYes
Sound
Sound output power4*10W + 2*10W
Sound TechNologyDolby Atmos, DTS Virtual X
NICAM / A2 StereoNICAM Stereo
User EqualizerYes
Sound - SpecialDolby MS12, Dolby Atmos
AC-4Yes
MPEG-HNo
Convenience
Media PlayerYes (Video, Audio, Picture)
Multi-Language OSD参考sheet Area List + PVR
Hotel TVYes
User InterfaceVIDAA U6.0
Internet
Important Apps (all countries)refer to APP sheet
Country-specific appsrefer to APP sheet
Web browserOdin
HbbTVHbbTV 2.0.3
MHEG supportYes (but only if Certification requires,e.g. Ziggo)
Anyview CastYes
Anyview StreamYes (DMP,DMR)
Smartphone appYes
Airplay2 SupportTBD
Voice Service SupportVIDAA Voice
Mid-field Voice SupportYes
Reception and TV Features
Digital and Analog TunerDVB-T2/T/C/S2/S
TwintunerNo
LCN SupportYes (Depending on location and operator)
Teletext SupportYes
EPG8 days forward EPG,
7 days backwards EPG (UK Only)
Parental ControlYes
PVR参考 , ref
Area List + PVR
Time Shift参考 , ref
Area List + PVR
Channel sortingBuild-in and exportable for PC edit (ChSort)
Favorite channel list4

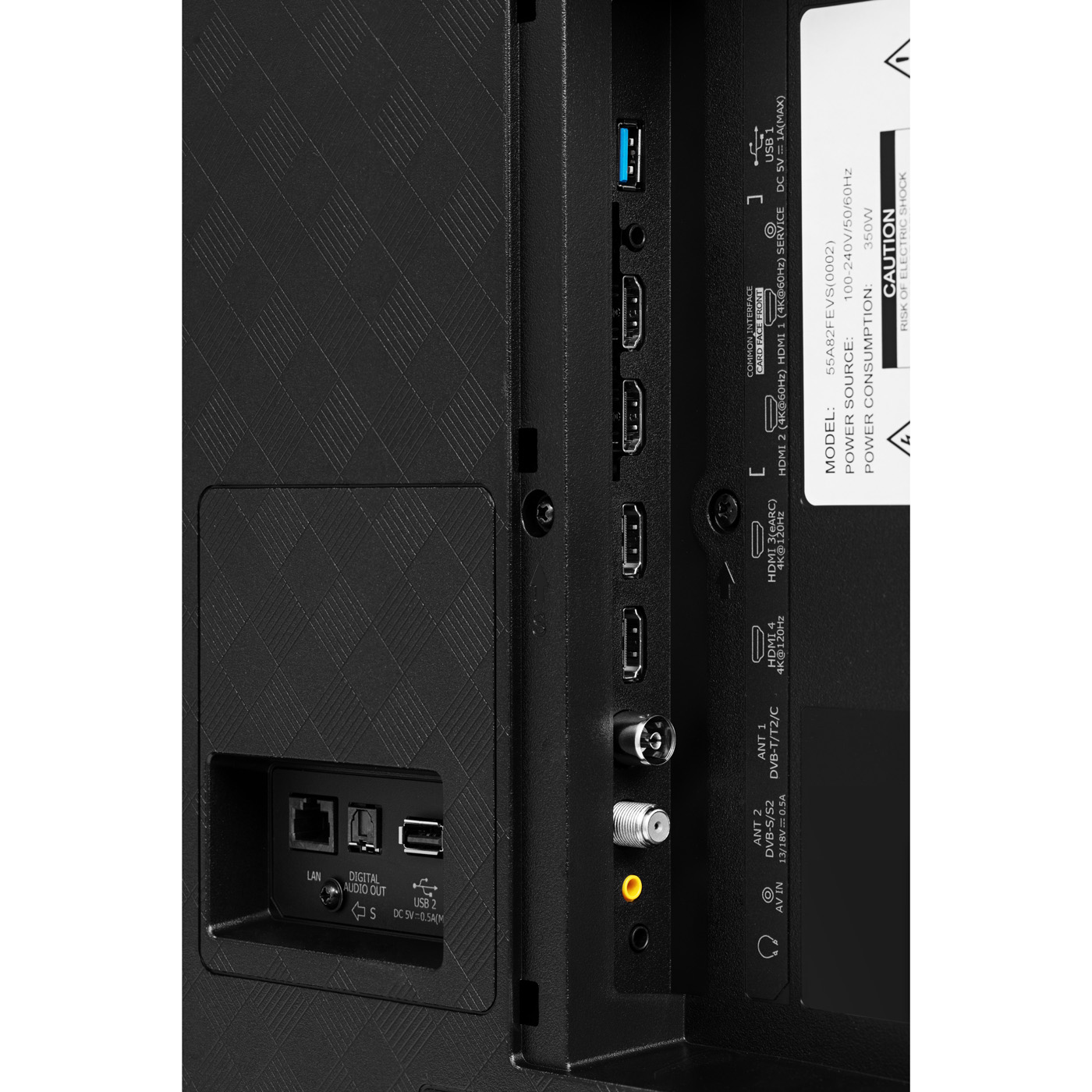

Connectivity
Common Interface (CI+)Yes  (CI+ ECP)
HDMI1HDMI2.0 (ALLM)
HDMI2HDMI2.0 (ALLM)
HDMI3HDMI2.1 (eARC, ALLM, VRR (120Hz))
HDMI4HDMI2.1 (ALLM, VRR (120Hz))
USB (2.0)1
USB (3.0)1
S/PDIF Output1
Audio (L/R) Input1(mini)
Headphone Output1
RF Tuner2
Composite (AV) Input1(mini)
Component YPb(Cb)/Pr(Cr) Input0
SCART0
VGA Input0
PC Audio Input (3.5mm)0
Subwoofer0
Ethernet RJ45 portYes(100M)
Wireless LAN adapter SupportYes
WiFi techNolegyIEEE 802.11 a/b/g/n/ac/ax (2.4G 5G and 6G)
Bluetooth Support and profilesYes (BT5.0)
light sensorYes
Eco & Power supply
Power Supply VoltageAC100~240V
Frequency50Hz/60Hz
Energy Efficiency Class (SDR)G
Energy Efficiency Class (HDR)G
Network Standby Consumption≤2W
Standby Consumption≤0.5W
Power off ConsumptionNA
Power Consumption (Nameplate)350
Annual Consumption (Nameplate)NA
Power Consumption SDR (Energy Rating Label)84W
Power Consumption HDR (Energy Rating Label)92W
1000h Consumption SDR (Energy Rating Label)84kWh/1000h
1000h Consumption HDR (Energy Rating Label)92kWh/1000h
Luminance Ratio>230 nit
Mercury contentYes -This television contains mercury only in certain parts or components ,in accordance with existing exemption clauses under the RoHS Directive.
Lead contentYes -This television contains lead only in certain parts or components ,in accordance with existing exemption clauses under the RoHS Directive.
Weight & Dimensions
Weight incl. Packaging29.0 kg
Product weight incl. Stand21.5kg
Product weight excl. Stand18.1kg
Weight of carton box4.4 kg
Weight of plastic foam in package material1.9 kg
Weight of plastic in package material0.1kg
Weight of metal in package material0
Package (Horizontal/Vertical)Vertical
Packaging Dimension (LxDxH)1454×214×894 mm
Product Dimension incl. Stand (LxDxH)1226×291×741mm
Product Dimension excl. Stand (LxDxH)1226×68×712 mm
Maximum distance between two stand(L)底座间最大尺寸NA
Bezel width(Top/Left&right/Bottom)1.75/1.75/1.75mm
Single standYes
Adjustable StandNo
Minimum distance between the standsNA
Cable ManagementYes
Accessories
Stand Material / ColorMetal/Dark Gray
Stand (LxW)566×291 mm
VESA Wall Mount Compatible300×200 mm
Second Remote Control (Model number)No
Remote BatteriesAA×2(Mid-field voice remote)/AAAx2(None mid-fileld voice remote)
User ManualYes
Quick start pageYes
Power cableYes
AdapterNo
Weight of packaging
Weight of packaging -paper, cardboard4.4kg
Weight of packaging- EPS1.9kg
Weight of packaging- foil PE0.1kg
Weight of packaging- PVC0
Weight of packaging- plastic- other0.1kg
Weight of packaging- wood0
Weight of packaging- metal0
Weight of packaging -paper0
Logistics & Warranty
堆码层数Number of packaging units3
整机装箱量Container Loading(40HQC)  255
DMP formats
Container FormatAVI,MP4,MKV,TS,FLV OGG
Video.AVI,.MP4,.MOV,.MKV,.MPG,.MPEG,.VOB,.FLV,.WebM,.OGM
Audio.wma,.mp4,.FLAC,.MP2,.MP3
music(mp3 aac wma wav)
Weight 29 kg
Dimensions 145.4 × 21.4 × 89.4 cm
