Model No. : 65U7H
Series : U7H

Front-cover Material/Color : Plastic/Dark Grey

Back-cover Material/Color : Plastic/Black

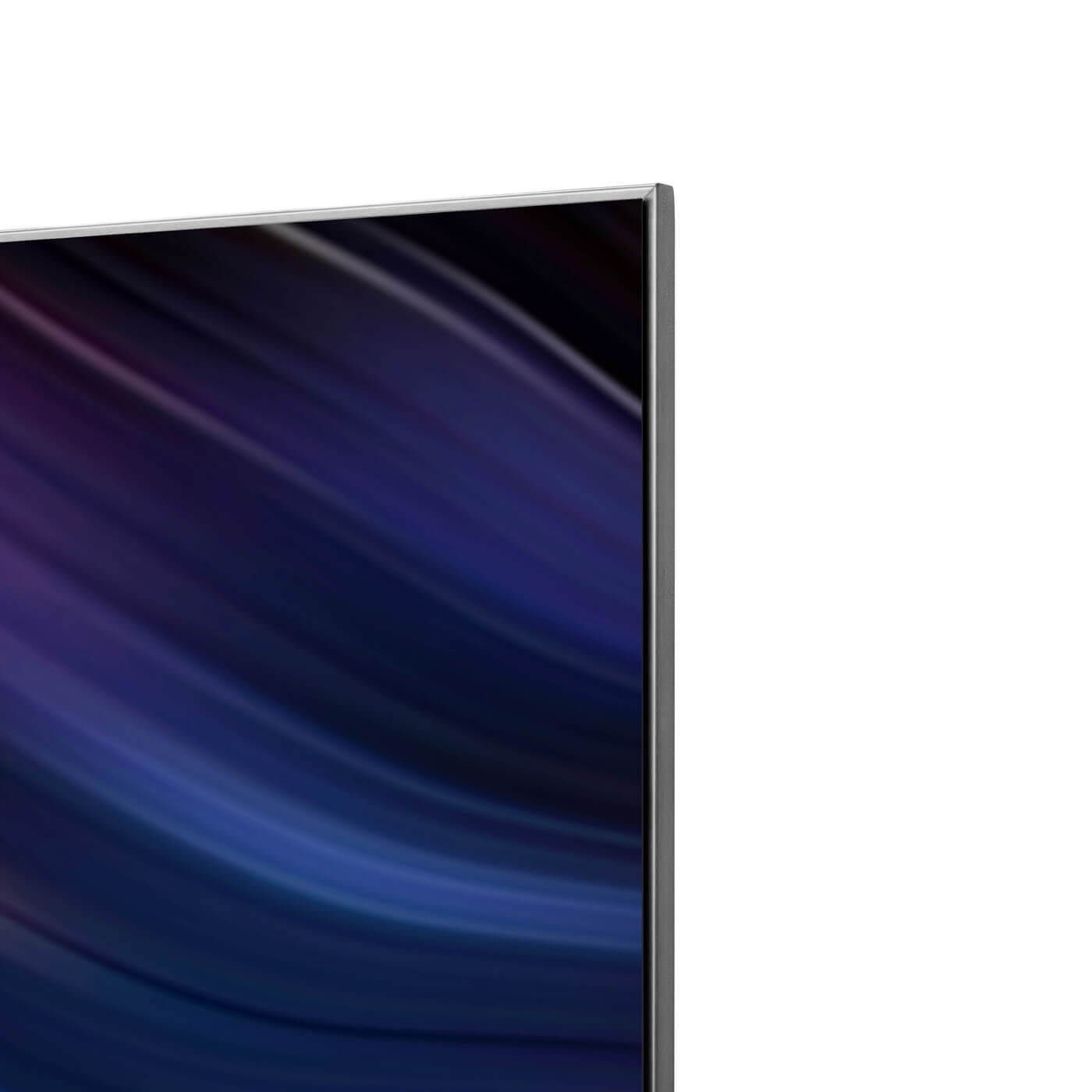

Frame Design/Material : Slim Design/Stainless steel

TV Type : ULED 4K Smart TV

Panel Type :  VA

Anti-reflectant screen :  No

Panel Aspect Ratio  :  16:09

Panel Response Time (ms) : 6

Screen Size (diagonal) : 65inch

Screen Size (diagonal) CM : 163.9

Visible Screen Area (cm^2) : 11478.1

Max. Resolution : Ultra HD 3840×2160

Curvature Rate : -

Angle of visibility : 178°

Display Color Depth : 8bit+FRC

TCON color depth : 8bit+FRC

Wide Color Gamut : Yes

Quantum Dot TechNology : Yes

KSF : No

Color gamut range (DCI-PC3) : > 90%

Vsync Frequency : 120Hz

Contrast : 5000:1(typical)

TV Brightness (nits)（Typical Value : 400

TV Peak Brightness (nits) and Duration (s) : 600

Backlight techNology : DLED

Local Dimming  :  Yes

Local Dimming Zones  : 32

Black Level (nit) : 0.1

3D techNology : No

PCI( Picuture Criteria Index) : No

HDR10 : Yes

HLG : Yes

HDR10+ : Yes

Dolby Vision : Yes

Processor : Quad Core/MT9900

Upscaling Ultra HD : Yes

MEMC : Yes

Decoder : HEVC (H.265),VP9,H.264,MPEG4, MPEG2,AV1

Game Mode Level :  Game Mode Pro

Game Mode（Input Lag : Yes (<20ms)

3D Digital Comb Filter : Yes

MPEG Noise reduction : Yes

Mosquito Noise reduction : Yes

UHD Premium : No

IMAX Enhanced  : No

Filmmaker mode : Yes

Dolby Vision IQ : Yes

HDR10+ Adaptive : Yes

Freesync Premium : Yes

Sound output power :  2*10W

Sound TechNology :  Dolby Atmos

NICAM / A2 Stereo  :  NICAM Stereo

User Equalizer  : Yes

Sound - Special  : Dolby Audio(MS12), DTS

AC-4  :  Yes

MPEG-H :  No

Media Player : Yes (Video, Audio, Picture)

Hotel TV : Yes

User Interface : VIDAA U6.0

Important Apps (all countries) : refer to APP sheet

Country-specific apps : refer to APP sheet

Web browser : Odin

HbbTV : HbbTV 2.0.3

MHEG support : Yes (but only if Certification requires,e.g. Ziggo)

Anyview Cast :  Yes

Anyview Stream :  Yes (DMP,DMR)

Smartphone app : Yes

Airplay2 Support : TBD

Voice Service Support : VIDAA Voice

Mid-field Voice Support : Yes

Digital and Analog Tuner  :DVB-T2/T/C/S2/S

Twintuner : No

LCN Support : Yes (Depending on location and operator)

Teletext Support : Yes

EPG : "8 days forward EPG,

7 days backwards EPG (UK Only)"

Parental Control  : Yes

Channel sorting   :  Build-in and exportable for PC edit (ChSort)

Favorite channel list :  4

Common Interface (CI+)   :  Yes (CI+ ECP)

HDMI1  : HDMI2.0 (ALLM)

HDMI2  : HDMI2.0 (ALLM)

HDMI3  :  HDMI2.1 (eARC, ALLM, VRR (120Hz))

HDMI4  :  HDMI2.1 (ALLM, VRR (120Hz))

USB (2.0) : 1

USB (3.0) : 1

S/PDIF Output : 1

Audio (L/R) Input : 1 （mini）

Headphone Output : 1

RF Tuner                :               2

Composite (AV) Input : 1 mini）

Component YPb(Cb)/Pr(Cr) Input : 0

SCART : 0

VGA Input : 0

PC Audio Input (3.5mm) : 0

Subwoofer : 0

Ethernet RJ45 port : Yes(100M)

Wireless LAN adapter Support : Yes

WiFi techNolegy : IEEE 802.11 a/b/g/n/ac (2.4G and 5G)

Bluetooth Support and profiles : Yes (BT5.0)

light sensor : Yes

Power Supply Voltage : AC100~240V

Frequency : 50Hz/60Hz

Energy Efficiency Class (SDR) : G

Energy Efficiency Class (HDR) : G

Network Standby Consumption : 111Wh/1000h

Standby Consumption : 185kWh/1000h

Power off Consumption  :  NA

Power Consumption (Nameplate) : 200W

Annual Consumption (Nameplate) : NA

Power Consumption SDR (Energy Rating Label) : 111W

Power Consumption HDR (Energy Rating Label) : 185W

1000h Consumption SDR (Energy Rating Label) : 111Wh/1000h

1000h Consumption HDR (Energy Rating Label) : 185kWh/1000h

Luminance Ratio : >230nit

Weight incl. Packaging : 29.5kg

Product weight incl. Stand : 19.9kg

Product weight excl. Stand : 19kg

Single stand : Yes

Adjustable Stand  :  No

Minimum distance between the stands : NA

Cable Management  :  Yes

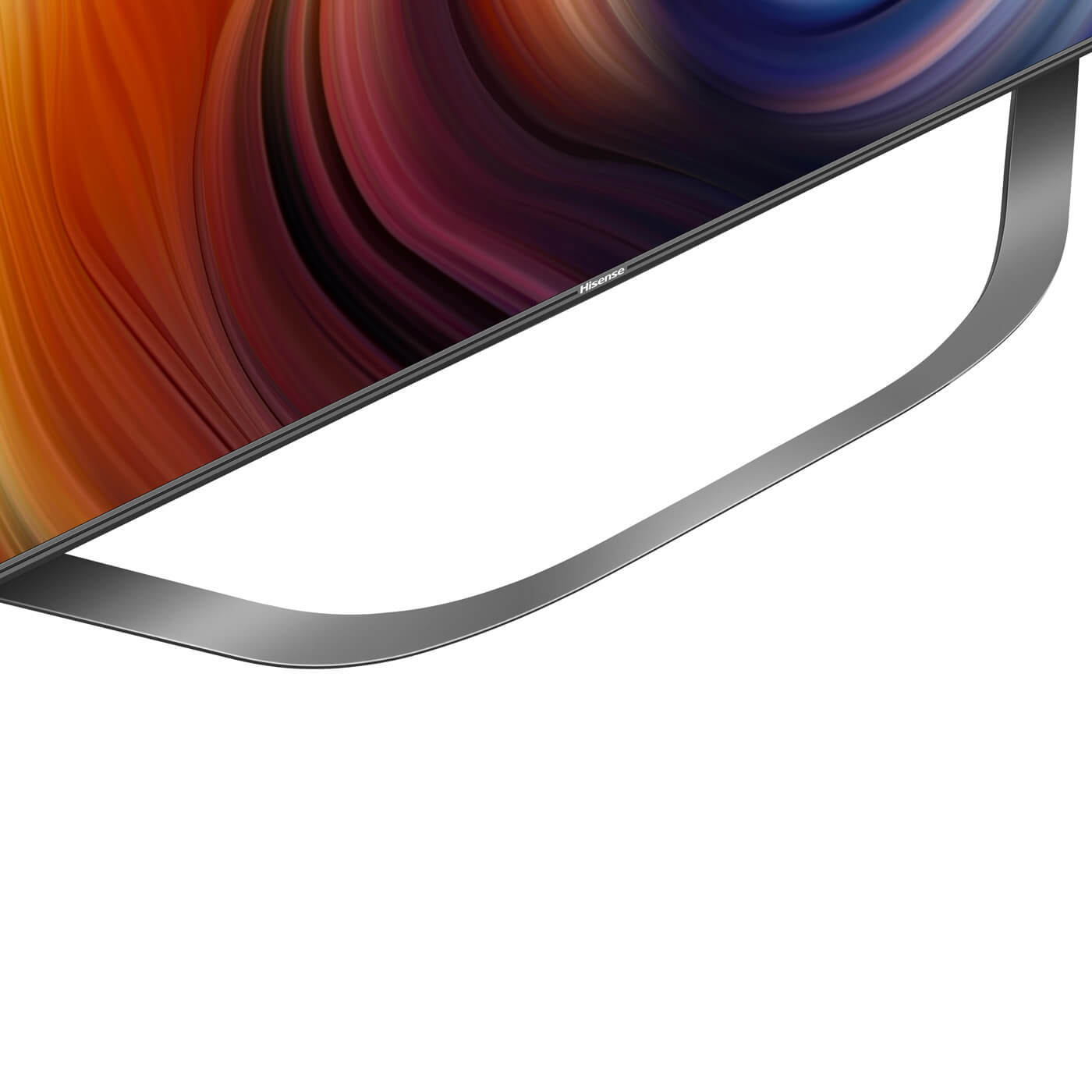

Stand Material / Color : Metal/Dark Gray

Stand (LxW) :  731×307mm

VESA Wall Mount Compatible : 400×200mm

Second Remote Control (Model number) : No

Remote Batteries : AA×2(Mid-field voice remote)/AAAx2(None mid-fileld voice remote)

User Manual : Yes

Quick start page : Yes

Power cable : Yes

Adapter : No
