Technical Spec'
What’s In The Box | |

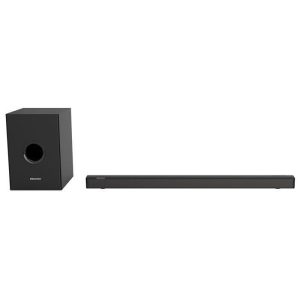

In The Box - Main Unit | Soundbar 1 PCS, Subwoofer 1 PCS |
In The Box - Accessories | AC power cord 2 PCS, Battery (AAA) 2 PCS, Operation Manual 1 PCS, Optical Cable 1 PCS, Quick Guide 1 PCS, Remote Controller 1 PCS, Wall Mount Guide 1 PCS, Wall Mount Kit 1 Set |
Remote Control | |
Remote Control Type | IR |
Remote Control Battery | AAA Battery |
Remote Control Keys | Bass +/-, Bluetooth, EQ, Mute, Next/Previous [Navigation / BT / USB], On/Standby (SB), Play / Pause / Pairing [BT / USB], Source, Volume +/- |
Control Keys (On Main Unit) | |
Controls On Sound Bar (Front Panel) | Input/Source, On/Standby, Volume +/- |
Controls On Subwoofer (Rear Panel) | ID Set |
Sound Enhancement | |
Sound Mode | Movie, Music, News |
Surround Virtualizer | Yes |
Decoder | |
Dolby Digital | Yes |
PCM | Yes |
MultichPCM | Yes |
Decoder Others | FLAC, MP3, WAV, WMA |
Key Components | |
DSP | SPHE8107S-A |
Bluetooth IC/Module | RDA5876 |
Wireless to Subwoofer (5.8GHz) | Bluetooth |
Sound Features | |
Sound Mode | Movie, Music, News |
Terminals | |
Soundbar (HDMI Output - ARC) | Yes |
Soundbar (Optical input) | Yes |
Soundbar (Coaxial input) | Yes |
Soundbar (AUX In (3.5mm)) | Yes |
Soundbar (USB - Type A) | 1, USB Audio and FW update |
Soundbar (Power Supply Socket - DC) | AC |
Subwoofer (Power Supply Socket (AC)) | Yes |
Functions | |
HDMI ARC | Yes |
BT Version | 4.1 |
Optical Input | Yes |
Coaxial Input | Yes |
Aux Input | 3.5mm Phone Jack |
Auto Power Off | Yes |
Wall Mountable | Yes |
USB port for Service (FW update) | Share USB Type A |
Auto Wake Mode (Enter Mode Method) | “Source” & “Vol+” (On Soundbar) |
Auto Wake Mode (Support Input) | ARC (Not for BT, AUX, Coaxial, Optical |
Compatible with TV Remote Control Code | TV: Vol+, Vol-, Mute |
Shop mode | “Source” & “Vol-” (On Soundbar) |
Amplifier | |
Amp Type | 2.1CH |
Rated Output (Sound Bar) | 120W, 30W x 4, Test Mode@THD=10% |
Rated Output Power (Subwoofer) | 200W, Test Mode@THD=10% |
Rated Output Power (Total) | 320W |
Amplifier IC Model (Subwoofer) | STA510F |
Amplifier IC Model (Sound Bar (FR / FL / ) (Full Range Amp) | STA369BW |
Amplifier IC Model (Sound Bar (FR / FL / ) (Tweeter Amp) | STA369BW |
Speaker System | (1 Full Range + 1 Tweeter) x 2, Total 4 Speakers |
Tweeter: Speaker Size | 1.5 inch 2pcs |
Subwoofer (Type) | Woofer + Port |
Subwoofer (Size) | 8" Woofer, 4Ω |
Power Supply | |
Voltage | AC ~ 100-240V |
Frequency | 50-60Hz |
Phase | AC Input |
Power Consumption (Sound Bar) | 30W |
Power Consumption (Subwoofer) | 50W |
Power Consumption (Stand-by) | <0.5W |
Specifications | |
Gross Weight (Kg) | 10.5 kg |
Sound Bar (Net weight (kg)) | 1.9 kg |
Sound Bar (Dimensions (WxHxD) mm) | 998x60x93 |
Gross Dimension (W x H x D) | 1058×498×331 |
Subwoofer (Net weight (kg)) | 6.3 kg |
Subwoofer (Dimensions (WxHxD) mm) | 245x360x312 |
More | |
Bluetooth Audio | Yes |
USB Audio (Type A) | Support, 1 port |
Weight | 10.6 kg |
---|---|
Dimensions | 106 × 50 × 33 cm |
